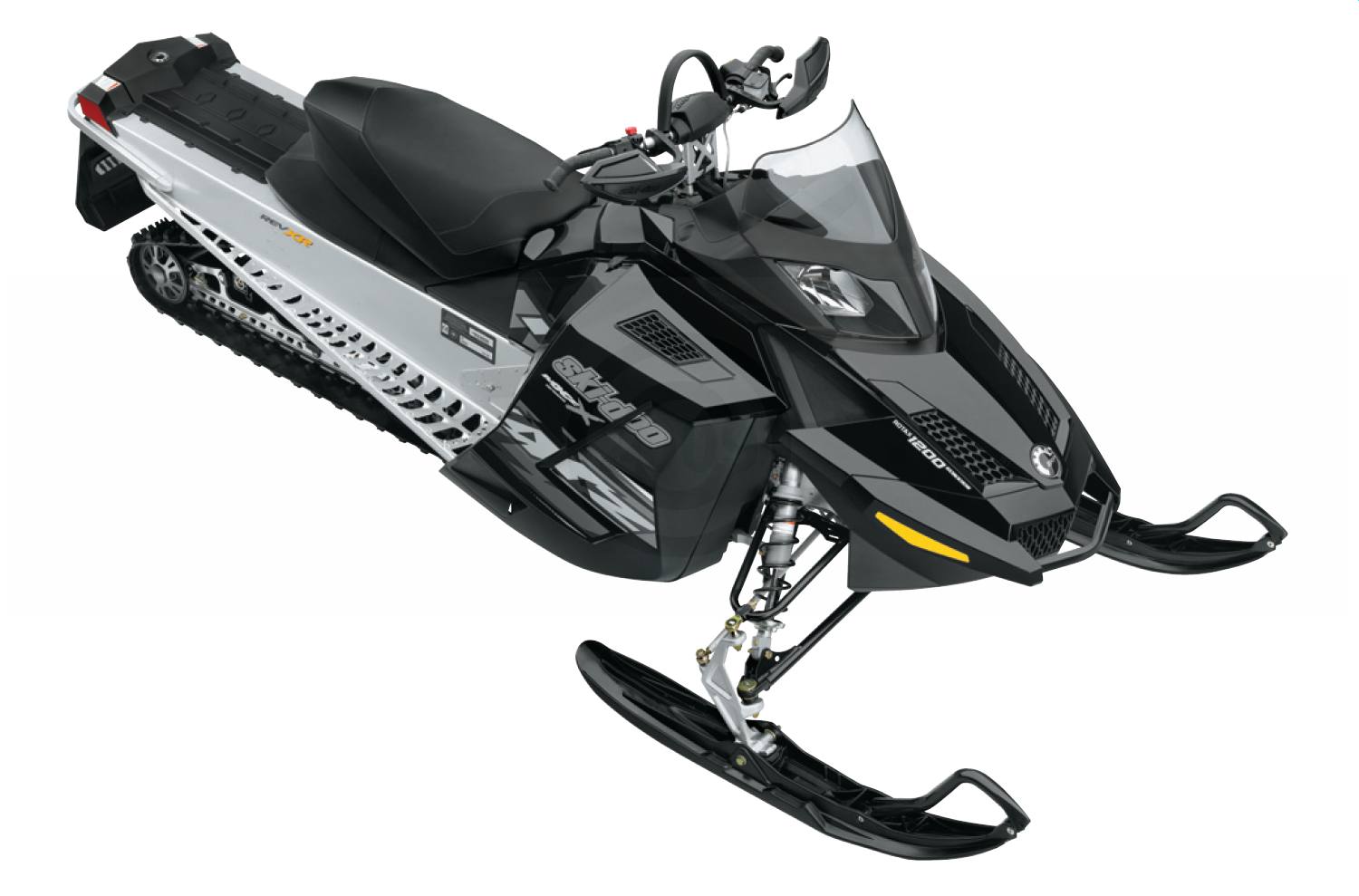

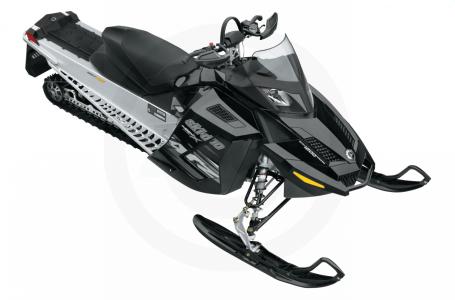

2009 Ski-Doo MX Z Renegade X Rotax® 1200 4-TEC
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Born from race sleds, but with a longer track for off-trail adventure and added traction.

  • NEW 4-TEC® engine choice
  • NEW REV-XR platform
  • NEW REV-XR glossy side panels
  • Brembo hydraulic brake and racing braided line
  • Lightweight front suspension components
  • KAYABA front and rear shocks HPG Clickers T-A alu.
  • Lightweight 16 x 137 x 1.25-inch RipSaw track
  • REV-XP racing seat
  • Riser block / Handlebar wind deflectors / Low windshield
  • Multi-function digital gauge w/ display
  • Mechanical reverse
  • Electric fuel gauge
COLOR
  • Yellow
  • Deep Black
ENGINE
  • Engine: Rotax 1200 4-TEC
  • Engine details: Liquid-cooled, 4-Stroke D.O.H.C., dry sump
  • Cylinders: 3
  • Displacement: 1170.7 cc / 46.9 in³
  • Bore: 91 mm / 3.6 in
  • Stroke: 60 mm / 2.4 in
  • Maximum engine speed: 7800 RPM
  • Carburetion: EFI
  • Recommended fuel type: Regular unleaded
  • Minimum octane: 87
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank: 3.7 liters / 3.9 quarts
  • Exhaust system: Single head-pipe, baffle muffler
POWERTRAIN
  • Drive clutch type: TRA™ IV
  • Driven clutch type: QRS
  • Engagement: 2800 RPM
  • Clutches center distance: 259.1 mm / 10.20 in
  • Small sprocket number of teeth: 27
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo hydraulic brake & racing braided line
SUSPENSION
  • Front suspension: Dual A-arm front suspension
  • Front shock: KAYABA HPG Clicker T-A alu.
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC™-5
  • Front arm shock: KAYABA HPG™ T-A alu.
  • Rear arm shock: KAYABA HPG T-A alu. Racing Clicker
  • Rear suspension max. travel: 406 mm / 16 in
DIMENSIONS
  • Vehicle overall length: 3110 mm / 122.4 in
  • Vehicle overall width: 1217 mm / 47.9 in
  • Vehicle overall height: 1110 mm / 43.7 in
  • Official dry weight: 236 kg / 521 lb
  • Ski stance: 1195 mm / 47 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 145 mm / 5.7 in
  • Track nominal width: 406 mm / 16 in
  • Track nominal length: 3487 mm / 137 in
  • Track profile height: 31.8 mm / 1.25 in
ADDITIONAL FEATURES
  • Skis: Pilot™ 5.7
  • Seating: REV-XP racing
  • Electric start: Standard
  • Reverse: Mechanical
  • Heated grips: Standard
  • Speedometer: Standard
  • Mirrors: Optional
  • Windshield: Low
  • Handlebar: Riser block (115 mm / 4.5 in) / J-hooks / Handlebar wind deflectors
  • Anti-slip running boards: Standard
NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.


Specifications

Engine
Engine Type Rotax 1200 4-TEC, 4-Stroke D.O.H.C., dry sump
Displacement 46.9 cu. in. (1170.7 cc)
Bore x Stroke 3.6" x 2.4" (91 x 60 mm)
Cylinders 3
Engine Cooling Liquid-cooled
Carburetion EFI
Exhaust Single head-pipe, baffle muffler
Drivetrain
Brake Type Brembo hydraulic brake & racing braided line
Drive Clutch TRA™ IV
Driven Clutch QRS
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC™-5
Rear Travel 16 in. (406 mm)
Ski Type Pilot™ 5.7
Ski Stance 47 in. (1195 mm)
Track Type RapSaw Track
Track Dimensions 137" x 16" x 1.25" (3487 x 406 x 31.8 mm)
General
Speedometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 521 lbs. (236 kg)
Windshield Low
Color Yellow or Deep Black
Options
Electric Start Standard
Hand & Thumb Warmers Standard
Reverse Mechanical
Mirrors Optional
